Chapter 3 : Creating a Project

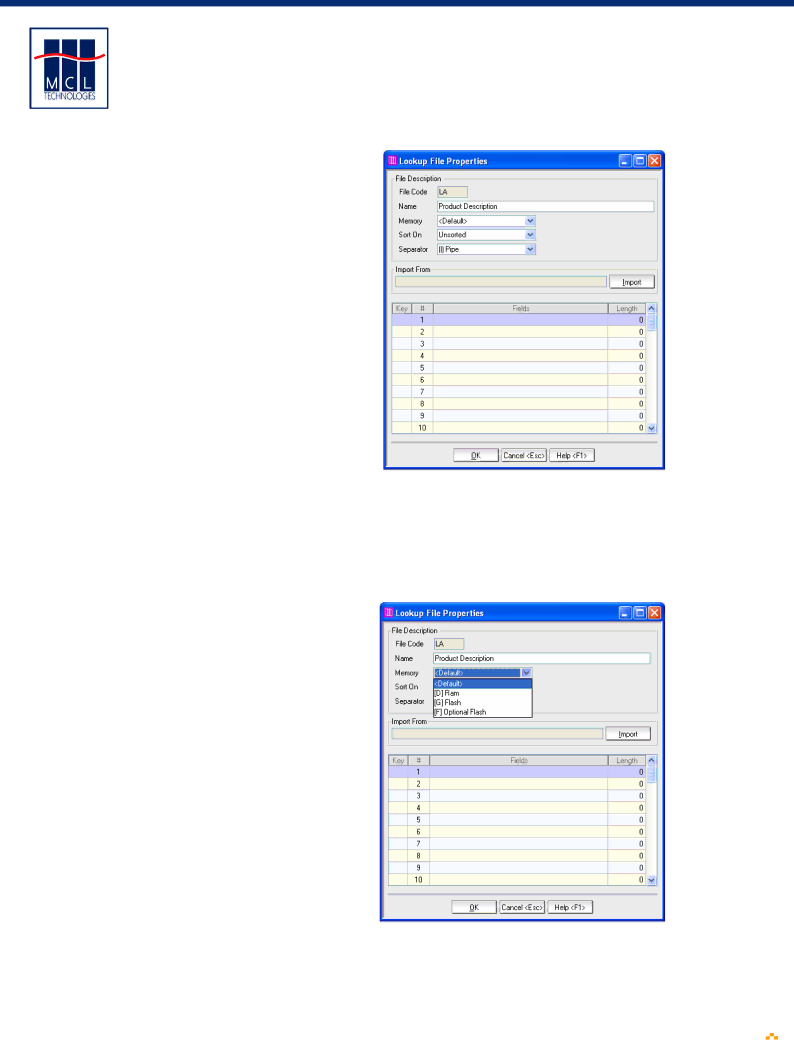

2Give this lookup file a name, for example, Product Description

The next lookup file property is the Memory property. The lookup file may be saved in flash, RAM, or optional flash memory on your Datamax printer when you download your 123 Print project and lookup files into your Datamax printer.

If you select <Default>, the lookup file is stored wherever the MCL-

Client is stored. This is typically in Flash memory.

3Indicate where you want this file to be saved on the printer

October 2007

Page 92

www.mcl-collection.com
