Chapter 3 : Creating a Project

21Select the Test and Branch process

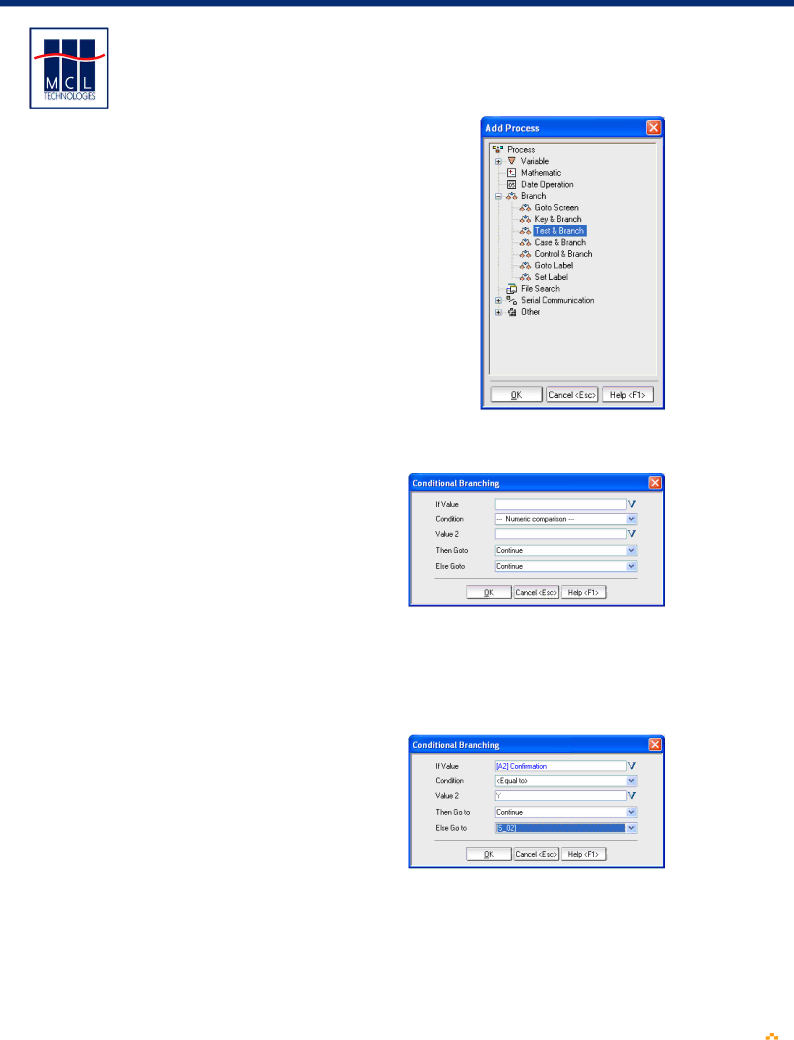

A Conditional Branching dialogue box is displayed as shown here

Using this process, one action will be performed if Yes has been entered on screen 4. Otherwise, a different action will be performed. This is referred to as Conditional Branching.

The first thing to do is to choose the Variable on which the test is to be performed. In this example the Yes or No input from screen 4 is stored in variable [A2] Confirmation.

22Select [A2] Confirmation in the If Value field

The test to be performed is to determine whether the value entered on screen 4 is equal to Y.

23Set the Condition field to <Equal to>

24Type Y in the Value 2 field.

If the value is Y, the program should continue. If, however, the user has entered N, or anything other than Y, the program should return to the screen which prompts the user to input the product name, that is, Screen 2.
