3.3.2.3. External Barcode Reader

General introduction

As discussed in Section 3.3.2 – Variables, Input Methods, several input



methods are available for your screen prompts.



This section discusses the External Barcode Reader input method and



the properties you need to set up when you select this input type.





External Barcode allows the User to use an external barcode scanner for inputs to the label program.

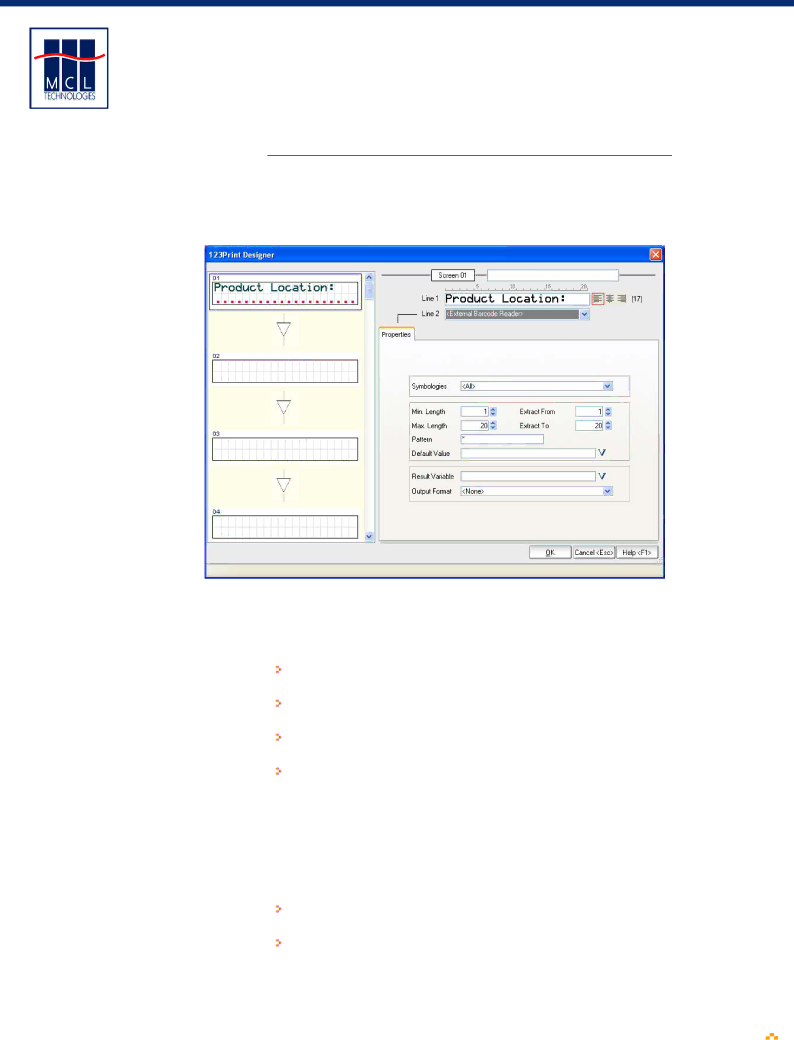

For External Barcode reader the property settings are as follows:

Symbologies

Set which types of Barcode Symbologies may be



read

Min. Length

Set the minimum number of characters needed



for the input to be accepted

Max. Length

Set the maximum number of characters needed



for the input to be accepted

Pattern

Set a required pattern for the input. Possible



pattern masks include the letters A-Z, the



numbers 0-9 and the special characters



$“_ *. These pattern masks and their use are



described in Chapter 5 – Using Processes. See



Section 5.2.2 Control and Branch for a detailed



description about the use of patterns.



The user will not be able to input a value that



does not match the pattern.

Extract From

Set the starting position if extracting only



certain characters from the input

Extract To

Set the ending position if extracting only certain



characters from the input



For example, if you set Extract From 4 and



Extract To 6, you will extract “555” out of



0005550
