Following is an example to illustrate the use of some of the options described above.

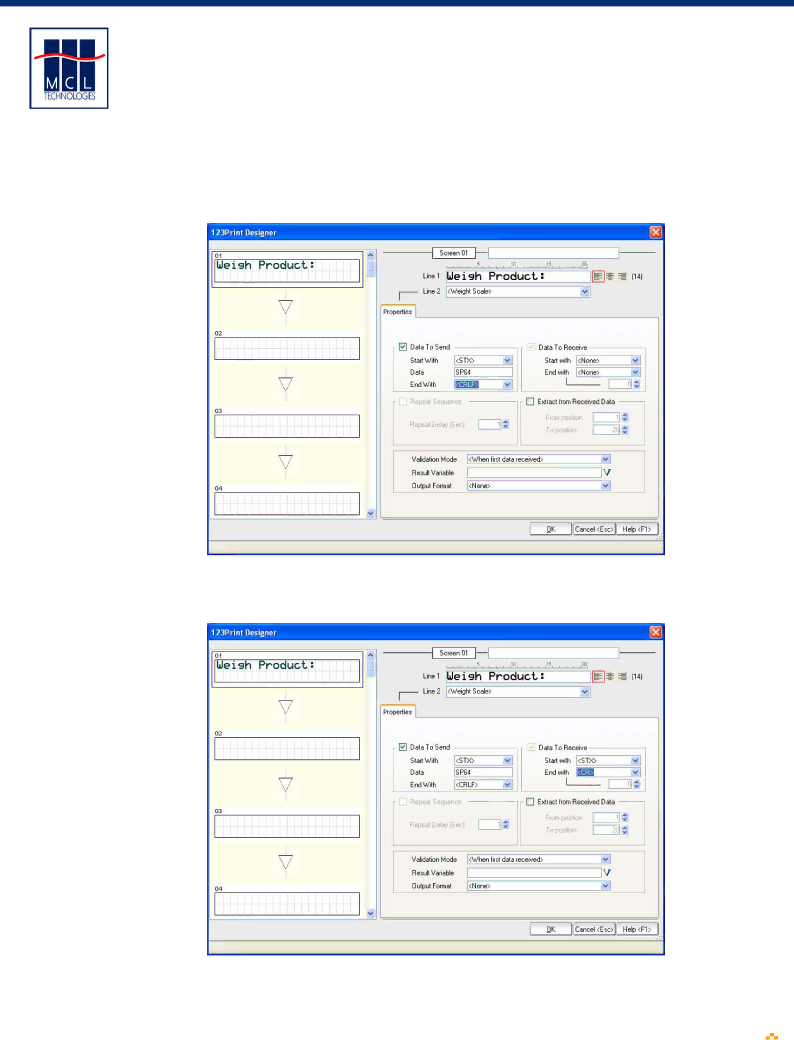

If the request to ask your scale to send weight information has the following structure: <STX> as a start of text character, followed by the command SP64, and ending with a <CRLF> (Carriage Return, Line Feed), then your Data To Send settings should look as shown below:

If, in return, you weight scale’s return data stream starts with <STX>, followed by the weight, and ends with a <CR>, your Data To Receive settings should look as shown below

When the entire data stream is received from the scale, the <STX> and <CR> are automatically stripped off—leaving only the information you are requesting, i.e. the weight.
