Chapter 3 : Creating a Project

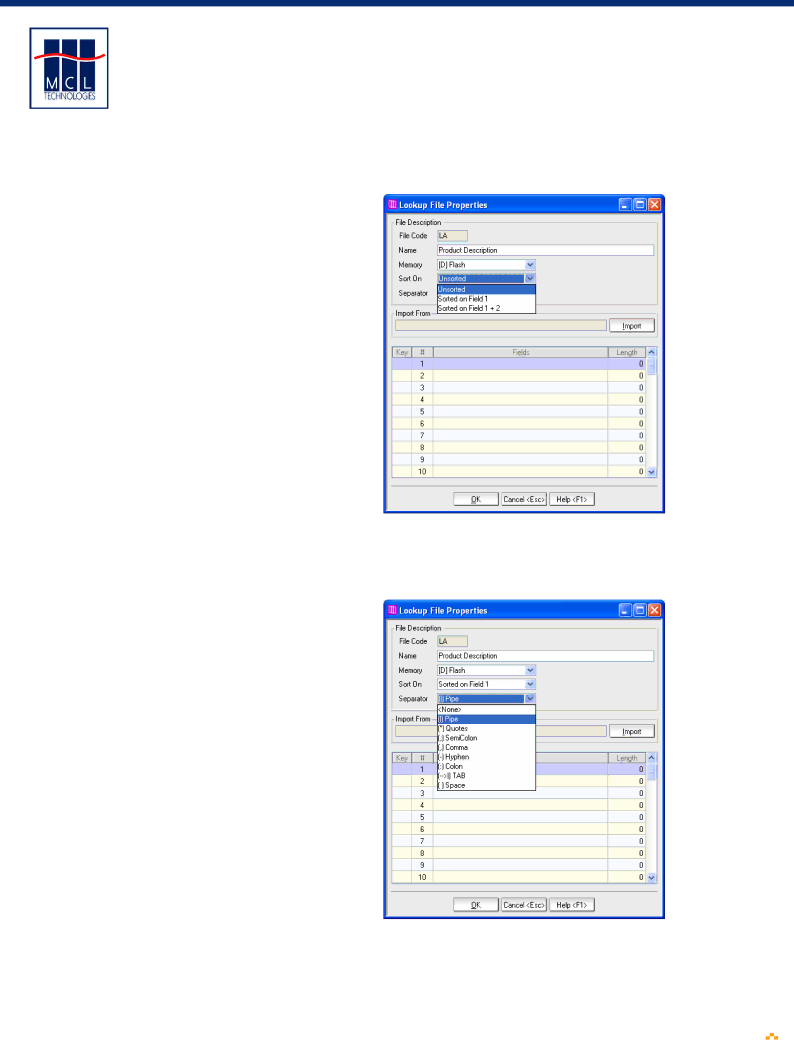

As shown below, you can leave the data in the lookup file unsorted, or you can sort it using the first field or the first and second fields of the file records. The lookup file will be sorted and saved according to this sort selection.

4Select the desired sort field(s), if any.

The next file property is the Separator property. 123 Print provides a variety of separators that can be used as field delimiters in the lookup file you are creating.

5Select the desired field separator, if any.

If you want to create a lookup file from scratch, you have now entered all the properties necessary to create the file.

6Click OK

The lookup file is created as shown below
