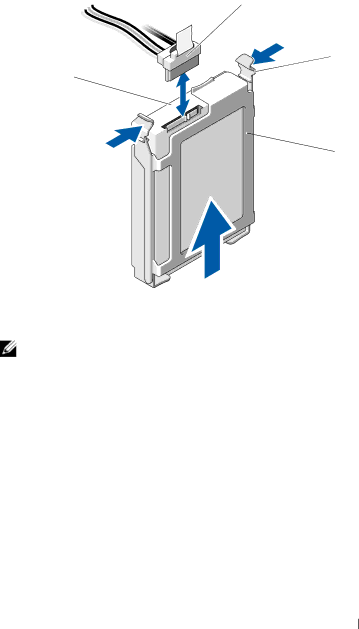

Figure 3-9. Removing or Installing a Hard Drive

2

3

1

4

1

hard drive

2

power/data cable

3

tabs (2)

4

hard drive bracket

NOTE: If you are not replacing the hard drive, remove the drive from the drive bracket (see Figure 3-11) and insert the empty bracket back into the drive bay.

5Detach the hard-drive bracket from the hard drive by pushing out at the edges of the bracket and removing the hard drive. See Figure 3-11.

6Replace the system cover. See "Closing the System" on page 58.

7Place the system upright on a flat, stable surface.

8Reattach any peripherals and connect the system to an electrical outlet.

9Turn on the system and attached peripherals.
