Brush™ (Indicador LCD - ) Esta modalidad avanzada permite ignorar objetos como

la broza y las ramas de los árboles de modo que sólo se visualice la distancia hasta los objetos de fondo. Cuando se adquiere más de un objeto, se visualizará la distancia

hasta el objeto más lejano y un círculo rodeará al indicador Brush™ informando así al usuario que se está visualizando en la pantalla LCD el objeto más lejano.

Cuando esté en esta modalidad, pulse el botón POWER para encender la unidad. Luego, alinee el círculo de puntería sobre el objeto al que quiere determinar la

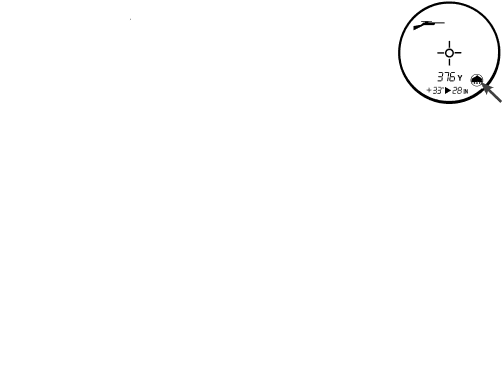

distancia. Luego, pulse y mantenga pulsado el botón POWER y mueva lentamente el láser sobre el objeto hasta que un círculo rodee el indicador de broza (Brush). Si le rayo láser reconoció más de un objeto (como un primer plano de la rama de un árbol y un ciervo en el fondo), se visualizará la distancia al objeto más lejano (ciervo) un círculo rodeará el indicador de broza informando al usuario que se está visualizando la distancia al objeto más lejano en la pantalla LCD (como se muestra más abajo). Puede que algunas veces el rayo láser sólo puede ver un objeto en su trayectoria. En este caso, se visualizará la distancia, pero como no se adquirió más de un objeto, el círculo no rodeará el indicador Brush.

CONSEJO ÚTIL: Mientras pulsa el botón POWER, puede mover lentamente el dispositivo de un objeto a otro y forzar intencionadamente a que el láser toque múltiples objetos para asegurarse de que sólo se visualice el más lejano de los objetos reconocidos por el láser.

Cuando se apaga el dispositivo, la unidad siempre volverá de forma predeterminada a la última modalidad usada para determinación del blanco.

CÓMO SABER QUÉ GRUPO BALÍSTICO HAY QUE SELECCIONAR

Los ingenieros de Bushnell han trabajado con los programas balísticos de Sierra® Bullets y han agrupado los calibres y las cargas más populares en ocho grupos balísticos (A,B,C,D,E,F,G,H). Una vez que sepa qué calibre y carga está usando, sólo tiene que mirar la tabla para determinar cuál de los ocho grupos

52balísticos corresponde a su carga y calibre particulares.

Combinaciones populares de calibre y carga

Grupo Balístico

Federal Cartridge.224 diá. 22-250 Rem, 55 gr. Bear Claw a 3600 fps

G

Federal Cartridge.224 diá. 22-250 Rem, 60 gr. Partition a 3500 fps

F

Remington Arms

.224 diá. 22-250 Remington Arms , 50 gr. V-Max a 3725 FPS

H

Remington Arms

.224 diá. 22-250 Remington Arms , 55 gr. PSP a 3680 FPS

G

Winchester .224 diá. 22-250 Rem, 55 gr. Ballistic Silvertip a 3680 FPS

H

Winchester .224 diá. 22-250 Rem, 55 gr. PSP a 3680 FPS

G

Federal Cartridge

.277 diá. 270 Win, 150 gr. Ballistic Tip a 3060 fps

F

Federal Cartridge

.277 diá. 270 Win, 150 gr. Partition a 3000 fps

F

Remington Arms

.277 diá. 270

Win, 140 gr. PSPCL Ultra a 2925 FPS

E

Remington Arms

.277 diá. 270

Win, 150 gr. SPCL a 2850 FPS

D

Winchester .277 diá. 270 Win,

150 gr. Partition Gold a 2930 FPS

E

Winchester .277 diá. 270 Win,

150 gr. PP-Plus a 2950 FPS

E

Federal Cartridge

.308 diá. 30-06 Spring, 180 gr. AccuBond a 2700 FPS

D

Federal Cartridge

.308 diá. 30-06 Spring, 180 gr. Bear Claw a 2700 FPS

D

Remington Arms

.308 diá. 30-06 Springfield, 180 gr. A-Frame a 2700 FPS

D

Remington Arms

.308 diá. 30-06 Springfield, 180 gr. BRPT a 2700 FPS

D

Winchester .308 diá. 30-06 Sprg, 180 gr. FailSafe a 2700 FPS

D

Winchester .308 diá. 30-06 Sprg, 180 gr. Partition Gold a 2750 FPS

D

Federal Cartridge.308 diá. 300 WSM, 180 gr. AccuBond a 2960 fps

F

Federal Cartridge.308 diá. 300 WSM, 180 gr. Bear Claw a 3025 fps

F

Winchester .308 diá. 300 WSM, 180 gr. Ballistic Silver Tip a 3010 FPS

F

Winchester .308 diá. 300 WSM, 180 gr. Fail Safe a 2970 FPS

F

Remington Arms

.308 diá. 300

R.S.A.U.M., 180 gr. PSPCL Ultra a 2960 FPS

E

Remington Arms

.308 diá. 300

Wby Mag, 180 gr. PSPCL a 3120 FPS

F

Lazzeroni Arms .308 diá., 7.82

Patriot, 180 gr. Partition Lubed a 3184 FPS

H

Lazzeroni Arms .308 diá., 7.82

Warbird, 150 gr. Lazerhead a 3775 FPS

H

Lazzeroni Arms .308 diá., 7.82

Warbird, 168 gr. HPBT MatchKing a 3550 FPS

H









53
