ACCESS USING RADIUS

CHAPTER 7: ACCESS USING RADIUS

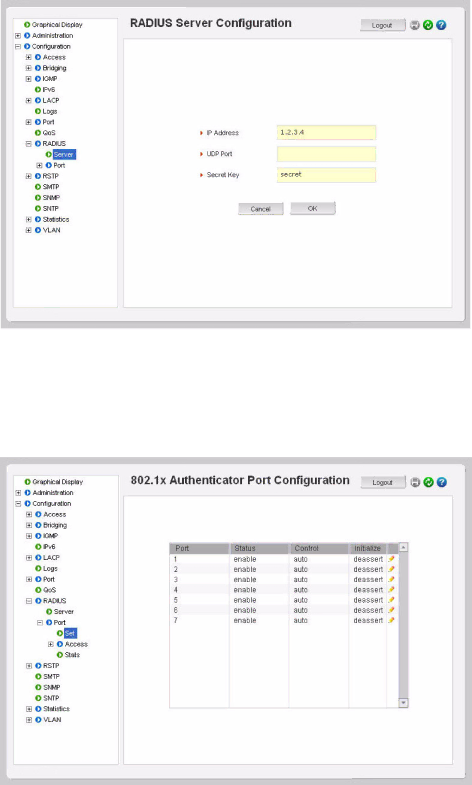

The following figure illustrates the editing of information for the RADIUS server. Note the

UDP port number can be left blank and the default port 1812 is used.

After configuring the server information, specific port information is configured.

ZSelect the Configuration > Radius > Port > Set menu item to configure the RADIUS characteristics of each port.

ZTo edit the port settings, click on the edit icon ().

7–10	MULTILINK ML1200 MANAGED FIELD SWITCH – INSTRUCTION MANUAL
