CHAPTER 13: RAPID SPANNING TREE PROTOCOL

RAPID SPANNING TREE PROTOCOL

Once again, if you are not familiar with the STP or RSTP parameter settings, is best to use the default values.

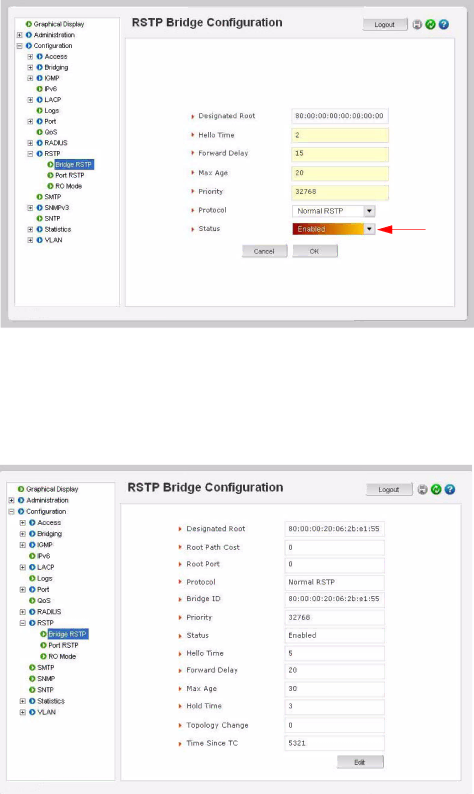

ZSimply enable RSTP (or STP) and let the system default values prevail. After RSTP is enabled, the fields are updated.

ZNote the Status, Time since TC, and Designated Root values.
