Inside the System

CAUTION: Many repairs may only be done by a certified service technician. You should only perform troubleshooting and simple repairs as authorized in your product documentation, or as directed by the online or telephone service and support team. Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.

CAUTION: This system must be operated with the system cover installed to ensure proper cooling.

NOTE: The illustration in this section shows a system with 3.5" hard drives.

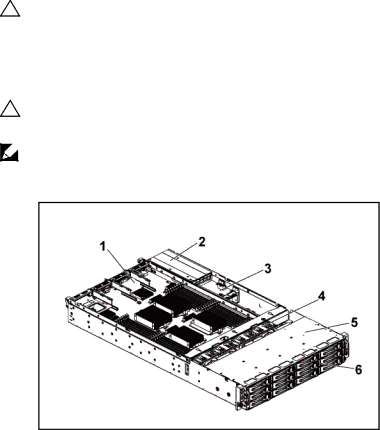

Figure 3-1. Inside the System

1	system-board assembly (2)	2	power supply (2)
3	power distribution board (2)	4	cooling fan (4)
5	hard-drive bay	6	hard drive (12)

Installing System Components 79

Page 79

Image 79

Dell C6145 manual 1. Inside the System, system-board assembly, power distribution board, cooling fan, hard-drive bay
