Dell C6145 manual Installing the Expansion Card, 11. Removing the Expansion Card

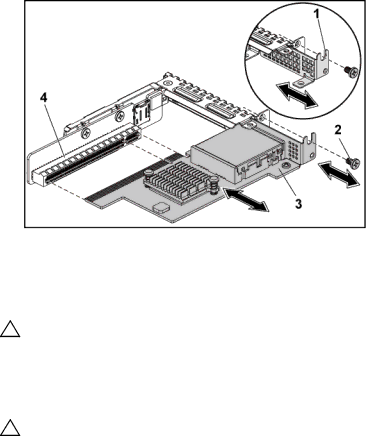

Figure 3-11. Removing the Expansion Card

1	metal filler bracket	2	screw
3	expansion card	4	expansion-card connector

Installing the Expansion Card

CAUTION: Many repairs may only be done by a certified service technician. You should only perform troubleshooting and simple repairs as authorized in your product documentation, or as directed by the online or telephone service and support team. Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.

CAUTION: Expansion cards can only be installed in the slots on the expansion- card riser. Do not attempt to install expansion cards directly into the riser connector on the system board.

1Unpack the expansion card and prepare it for installation. For instructions, see the documentation accompanying the card.

2Turn off the system, including any attached peripherals, and disconnect the system from its electrical outlet.

Installing System Components 97
