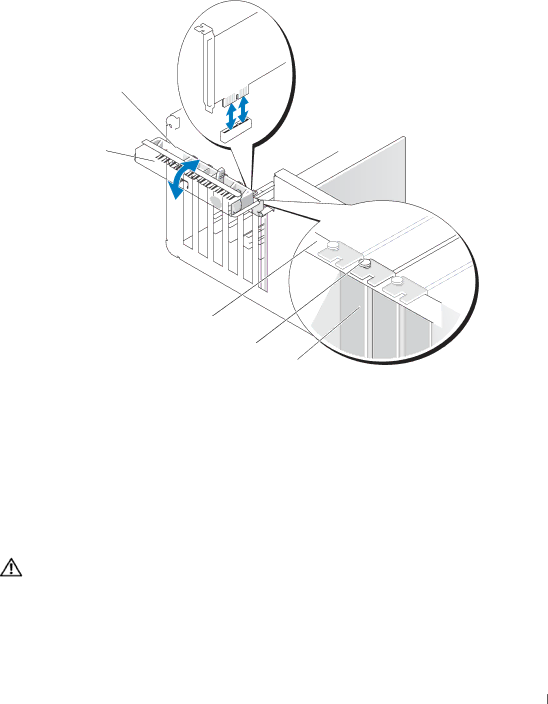

Figure 3-13. Removing and Installing an Expansion Card

1

2

3

4

5

1

release tabs (2)

2

card retention door

3

alignment bar

4

alignment guide

5

filler bracket





7Close the card retention door to secure the remaining card(s) in the system. See Figure 3-13.

8Close the system. See "Closing the System" on page 41.

9Reconnect the system to the electrical outlet, and turn on the system and attached peripherals.

10Remove the card’s device driver from the operating system.

Installing an Expansion Card

CAUTION: Many repairs may only be done by a certified service technician. You should only perform troubleshooting and simple repairs as authorized in your product documentation, or as directed by the online or telephone service and support team. Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.

1Turn off the system and attached peripherals, and disconnect the system from the electrical outlet.

2Open the system. See "Opening the System" on page 41.

Installing System Components

57
