C 9.92



Operating Instructions

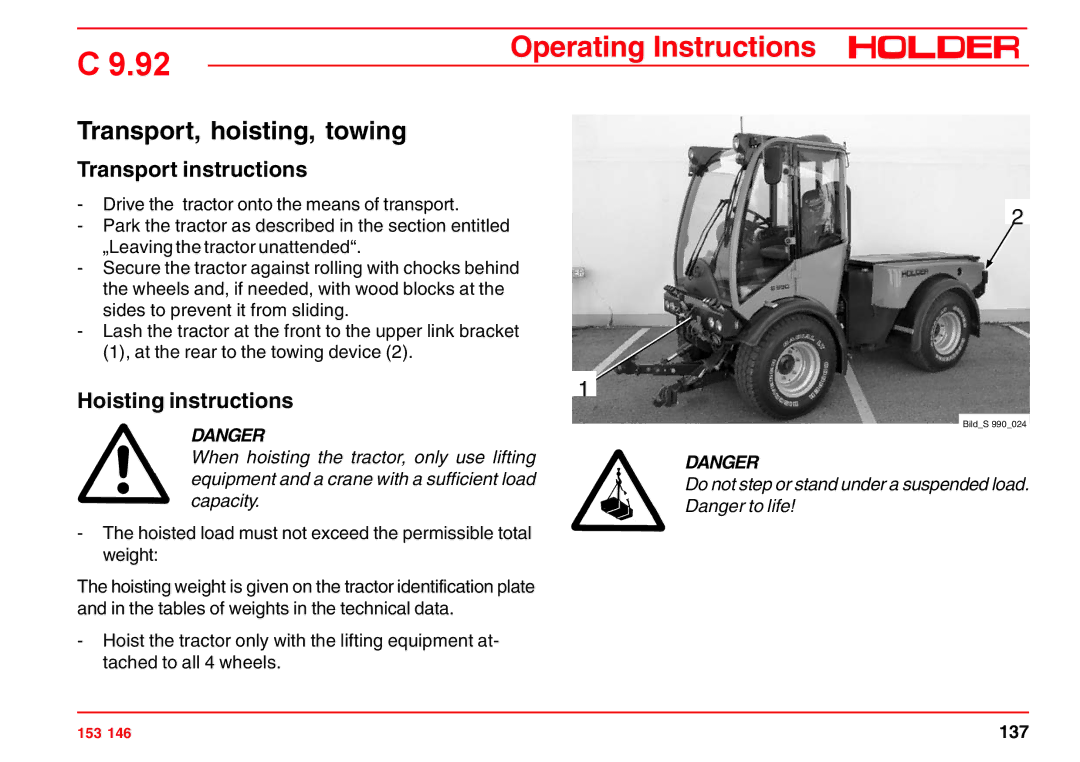

Transport, hoisting, towing









ATTENTION



1



2





3



If the parking brake can not be released due to a loss of electrical power or an electrical failure, the electric cylinder must be relieved before the tractor can be towed.

DANGER

Secure the tractor against rolling with chocks.

- Pull off the protective hose (3) toward the front.

- Remove the lock nut (2) with a 17mm Allen key until the electric cylinder (1) is relieved.

Bild_S 990_026

The parking brake is now released and the tractor can be towed.

Have the parking brake repaired only by your service cen- tre.

-Fully extend the electric cylinder.

-Screw a new lock nut (2) on until the lock nut con- tacts the compression spring.

-Refit the protective hose (3).

Check the parking brake.

153 146

139
