Proceed, Set Online Menu, Shows the Set Online menu | IBM 3590

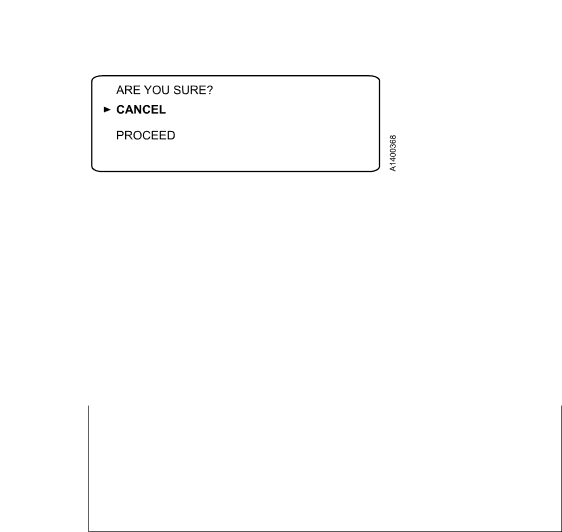

Figure 11. Confirmation Menu

Cancel

Causes the model-unique Licensed Internal Code to ignore the selection and causes the Services menu to appear.

Proceed

Causes the model-unique Licensed Internal Code to perform the operation that is chosen (Reset Drive or Force Error Dump) from the Services menu.

Set Online Menu

Table 9 shows the Set Online menu.

Table 9. Set Online

Function	Next Menu

Cancel	“Services Menu” on page 33

Port 0	“Options Menu” on page 31

Port 1	“Options Menu” on page 31

Both	“Options Menu” on page 31

Note: Supplemental Message Line 1: <none> Supplemental Message Line 2: <none>

Cancel

Causes the “Services Menu” on page 33 to appear.

Port 0 Causes SCSI port 0 to be set online.

Port 1 Causes SCSI port 1 to be set online.

Both Causes SCSI port 0 and SCSI port 1 to be set online.

Note: The host must also vary the device online.

Chapter 3. Drive Operator Panel and Controls 35
