Chapter 4. Automatic Cartridge Facility (ACF) and Magazine

This chapter describes the Automatic Cartridge Facility (ACF) and the magazine.

ACF Description

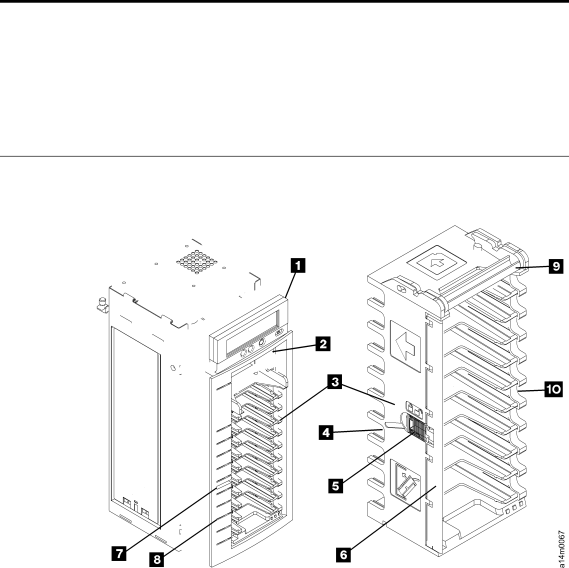

Figure 13 shows the Automatic Cartridge Facility with a loaded magazine.

Figure 13. 3590 ACF and Magazine

The following lists the ACF components:

Operator Panel

Priority Cell

Magazine

Machine Side of Magazine

Magazine Cartridge Lock

Magazine Door

Lock Button
