Additional Procedures

PMU Flex Cable Gasket Installation - 1







PMU Flex Cable

Gasket Installation

1 Peel the paper backing off the gasket.

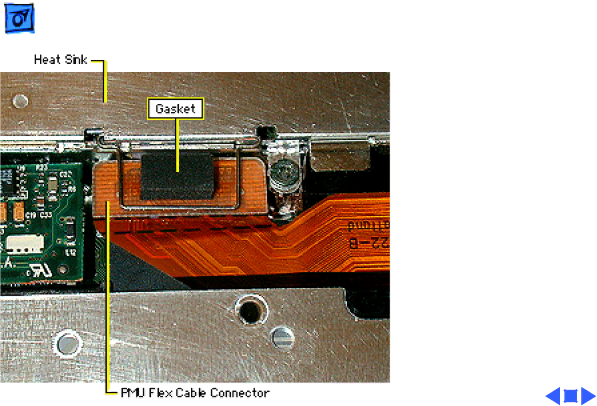

2 Place the gasket on the PMU flex cable connector, centered inside the handle of the heat sink.

3 Verify that the handle of the heat sink does not rest on the gasket.

4 Press down firmly on the gasket to set the adhesive.
