Jam at F | HP Ci 1100 manual

Care and Maintenance

■Jam at F

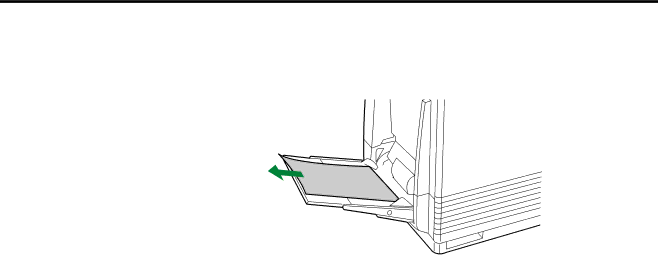

1 Remove the jammed media from the multi-purpose tray.

2 Open and close the front cover to clear the error message from the message display.

81

Image 90

HP Ci 1100 manual Jam at F
