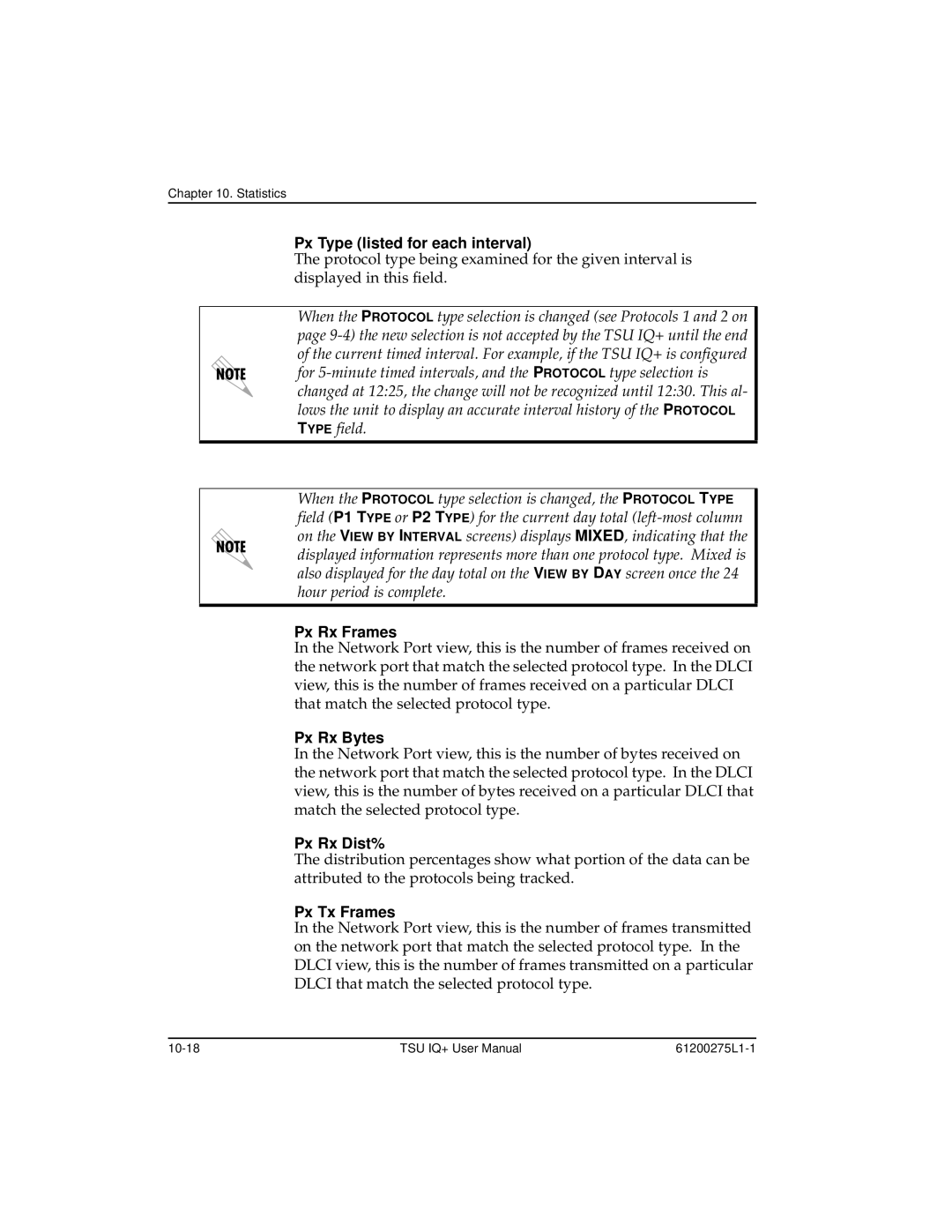

Chapter 10. Statistics

Px Type (listed for each interval)

The protocol type being examined for the given interval is displayed in this field.

When the PROTOCOL type selection is changed (see Protocols 1 and 2 on page 9-4) the new selection is not accepted by the TSU IQ+ until the end of the current timed interval. For example, if the TSU IQ+ is configured for 5-minute timed intervals, and the PROTOCOL type selection is changed at 12:25, the change will not be recognized until 12:30. This al- lows the unit to display an accurate interval history of the PROTOCOL

field.

When the PROTOCOL type selection is changed, the PROTOCOL TYPE field (P1 TYPE or P2 TYPE) for the current day total (left-most column on the VIEW BY INTERVAL screens) displays MIXED, indicating that the displayed information represents more than one protocol type. Mixed is also displayed for the day total on the VIEW BY DAY screen once the 24 hour period is complete.

Px Rx Frames

In the Network Port view, this is the number of frames received on the network port that match the selected protocol type. In the DLCI view, this is the number of frames received on a particular DLCI that match the selected protocol type.

Px Rx Bytes

In the Network Port view, this is the number of bytes received on the network port that match the selected protocol type. In the DLCI view, this is the number of bytes received on a particular DLCI that match the selected protocol type.

Px Rx Dist%

The distribution percentages show what portion of the data can be attributed to the protocols being tracked.

Px Tx Frames

In the Network Port view, this is the number of frames transmitted on the network port that match the selected protocol type. In the DLCI view, this is the number of frames transmitted on a particular DLCI that match the selected protocol type.
