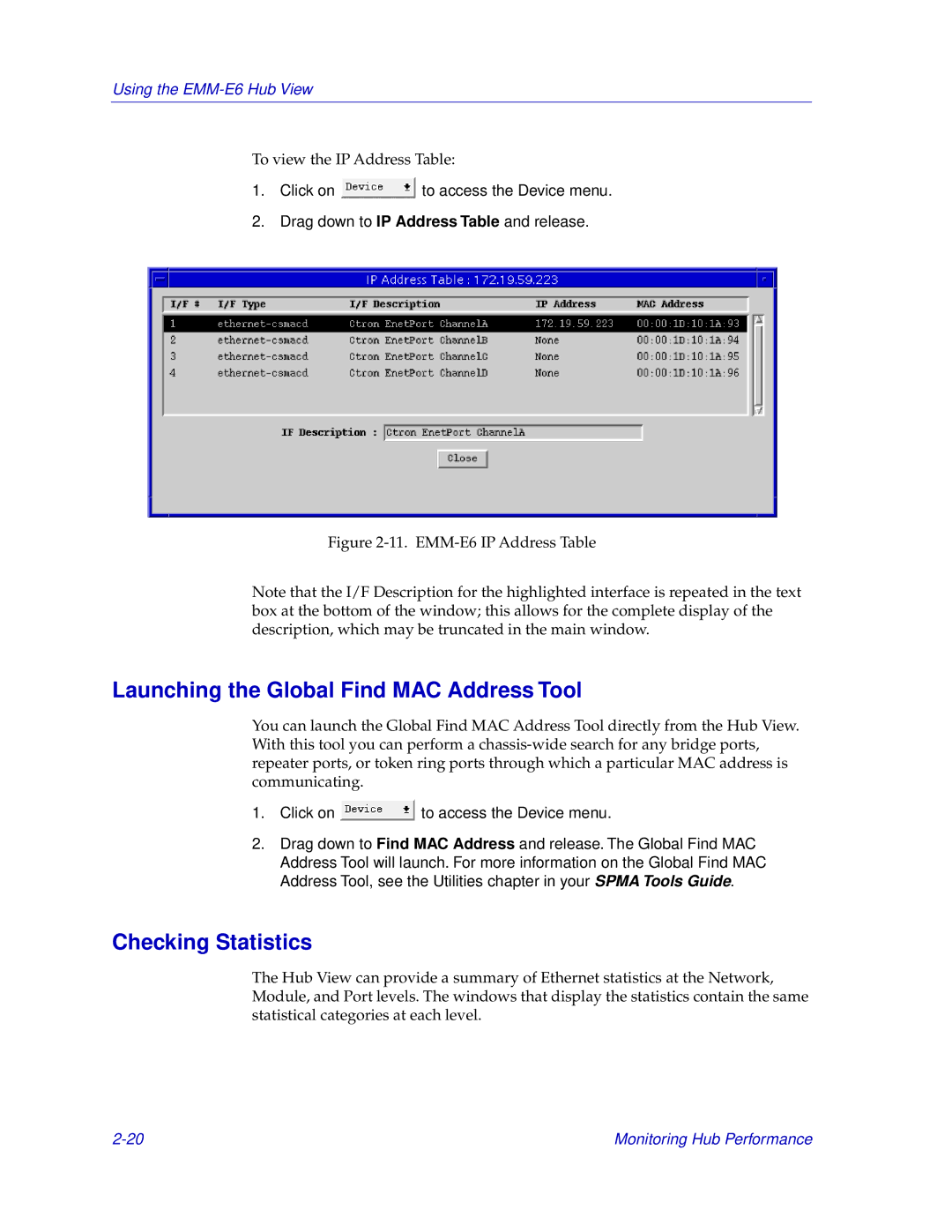

Cabletron Systems EMM-E6 Launching the Global Find MAC Address Tool, Checking Statistics, 2-20

Using the EMM-E6 Hub View

To view the IP Address Table:

1.Click on to access the Device menu.

2.Drag down to IP Address Table and release.

Figure 2-11. EMM-E6 IP Address Table

Note that the I/F Description for the highlighted interface is repeated in the text box at the bottom of the window; this allows for the complete display of the description, which may be truncated in the main window.

Launching the Global Find MAC Address Tool

You can launch the Global Find MAC Address Tool directly from the Hub View. With this tool you can perform a chassis-wide search for any bridge ports, repeater ports, or token ring ports through which a particular MAC address is communicating.

1.Click on to access the Device menu.

2.Drag down to Find MAC Address and release. The Global Find MAC Address Tool will launch. For more information on the Global Find MAC Address Tool, see the Utilities chapter in your SPMA Tools Guide.

Checking Statistics

The Hub View can provide a summary of Ethernet statistics at the Network, Module, and Port levels. The windows that display the statistics contain the same statistical categories at each level.

2-20 Monitoring Hub Performance
