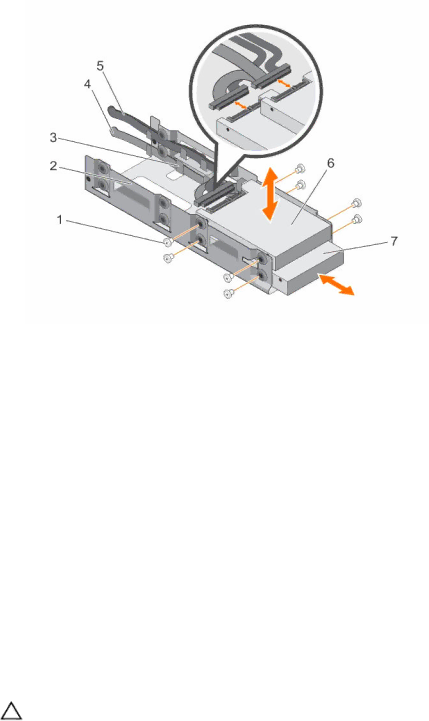

Figure 33. Removing and installing a 2.5 inch cabled hard drive (hard drive 2/C and hard drive 3/D) from the hard drive cage
1. | screw (8) | 2. | hard drive cage |
3. | cable routing clip | 4. | power cable |
5. | signal cable | 6. | hard drive 2/C |
7.hard drive 3/D
Next steps
1.Install the hard drives.
2.Install the hard drive cage cover.
3.Install the hard drive cage into the hard drive cage slot in the chassis.
Related Tasks
Installing a 2.5 inch cabled hard drive into the hard drive cage
Installing the optional 2.5 inch hard drive cage cover
Installing the optional 2.5 inch hard drive cage
Installing a 2.5 inch cabled hard drive into the hard drive cage
Prerequisites
CAUTION: Many repairs may only be done by a certified service technician. You should only perform troubleshooting and simple repairs as authorized in your product documentation, or as directed by the online or telephone service and support team. Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.
1.Ensure that you read the Safety instructions.
