Page 54

Auto Cutter

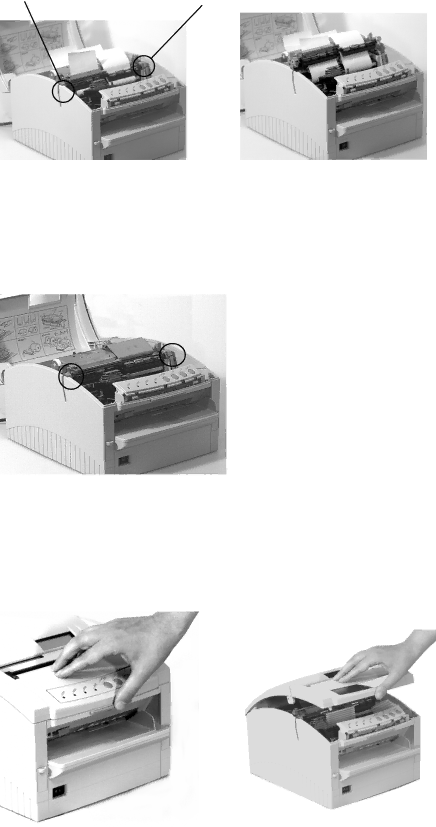

3.Press the two levers (1) on either side at the same time as shown, lift the plate assembly and gently pull out the jammed paper in the direction of the arrow.

Note: Be careful not to leave small pieces of paper.

1	1

4.Load a new paper roll.

For the procedure to load Roll Paper, refer to Section 1.5.1.

Note: Before loading Roll Paper, press down on the two levers shown below to close the plate assembly securely.

Auto Cutter

When paper gets jammed at the Auto Cutter, remove the paper following the procedure below.

1.Press the Cover Open Bar, and open the printer cover.

Caution! The printhead may be HOT!

54 OKIPOS 425D

Image 54
