5.7.5.3.4 Fixing Method of Multi-part Paper Joint

5.7.5.3.4 Fixing Method of Multi-part Paper Joint

The joint fixing method for a multi-part paper shall be spot-pasting, line-pasting or crimping. Spot pasting is the proper precaution against position deviation made when piling sheet tiers.

Crimping may cause position deviation of approx 3 mm.

Metal staples must not be used.

1Spot Pasting

a Spot pasting must be conducted on both right/left sides. Paper which is pasted on only one side is not accepted. b Equal amount paste shall be applied to the fixing points, whose size shall be f3 ~f5 mm.

Press the pasting points to prevent lifting. Be careful not to generate distinct wrinkles.

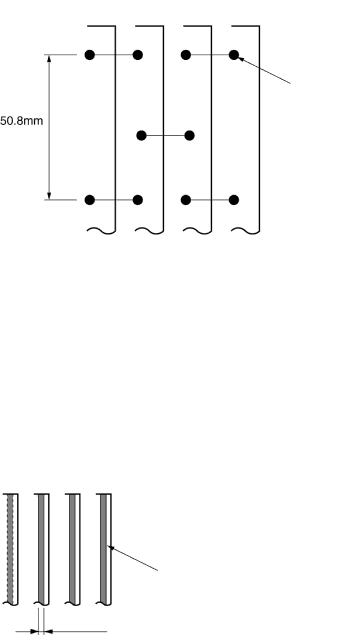

c See the fig. below for the pasting positions.

d Apply spot pasting in zigzag alternately for each sheet.

1

2

1Pasting spot

250.8mm (2 inch)

2Line Pasting

a Paste shall be applied evenly to the fixing line, whose width shall be 1 – 2 mm. Press the pasting line to prevent lifting.

Be careful not to generate distinct wrinkles. b Do not let paste leak out paper edges.

B C D E

		A	Pasting line
		B	1st
		C	2nd
	A	D	3rd
	A	E	4th
		E	4th
		F	1~2mm

F

Developer’s Guide: English 85

Image 85
