6.2.2 Code table (OKI — Standard Type)

6.2.2 Code table (OKI — Standard Type)

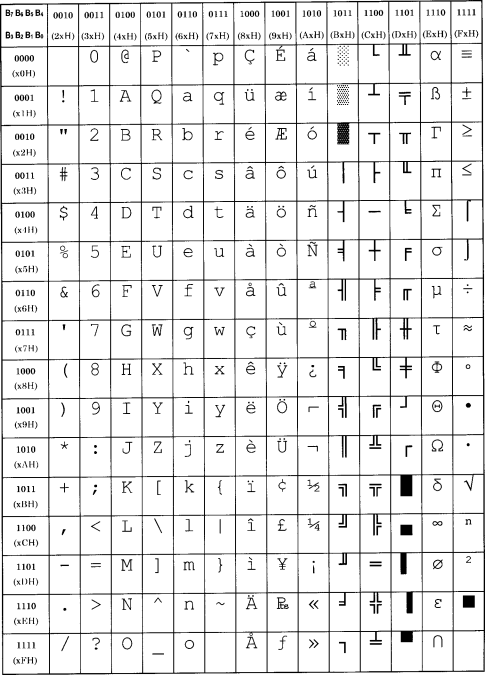

The character code tables follow.

6.2.2.1 USA

10xH and 1xH are Control Code areas.

2If a code received is other than a control code in 0xH and 1xH, it is ignored.

3The above table assumes international character set is set to “American.”

4The blank space (20H, 7FH, FFH) indicates a space code.

112 OKIPOS 425D
