Page 92

Paper Feed Specifications

5.8	Paper Feed Specifications
5.8.1 Paper feed methods/Paths
a	Friction feed		For Cut-sheet paper
b	Friction feed		For Roll paper
c	Push tractor feed (Front path)		For Sprocket paper (Tractor)

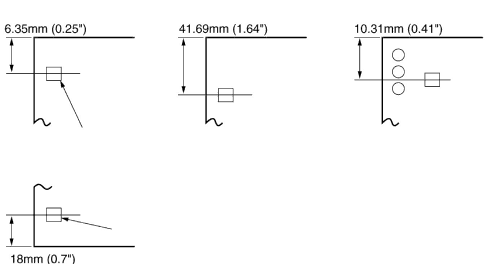

5.8.2 Paper Positioning Restrictions
	1	2	3

4

6

5

1Cut-sheet paper (slip)

2Roll paper

3Sprocket paper (Tractor)

4Printing position on the first line

5Printing position on the last line

6Cut-sheet paper (Counterfoil, Stub)

5.8.3 Paper Tear-off

Roll paper

The paper can be torn off 41.69mm (1.64 inch) above the first printed line. A sharp serrated edge is provided on the top cover for paper tear-off.

Sprocket paper (Tractor)

The paper can be torn off 35.96mm (1.42 inch) above the first printed line. A sharp serrated edge is provided on the access cover for paper tear-off.

5.8.4 Paper End Detection

1With cut-sheet paper feed, the paper end is detected when the remaining paper length is about 19.6mm (0.77 inch) from the last printed line.

2With roll paper feed, the paper end is detected when the remaining paper length is about 87.83mm (3.46 inch) from the last printed line.

3With Sprocket paper (Tractor) feed, the paper end is detected when the remaining paper length is about 19.6mm (0.77 inch) from the last printed line.

4Upon detecting the paper end, the printer stops printing and sends a paper end signal to the interface.

92 OKIPOS 425D
