5.7.5.4.MICR (only with MICR Type)

5.7.5.4.MICR (only with MICR Type)

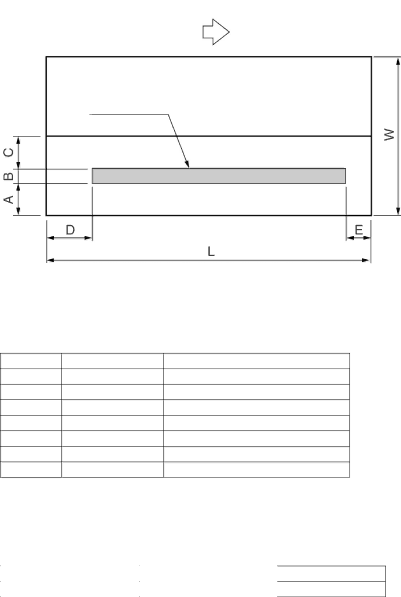

5.7.5.4.1 Paper Size and Scanning Area

1

2

1Paper inserting direction

2Scanning Area

Symbol

W

L

A

B

C

D

E

Designation

Paper width

Paper length

-

Scanning area

-

-

-

Standard Value

76~78mm (2.99~3.07 inch)

174~176mm (6.85~6.93 inch)

4.8mm (0.19 inch)

6.4mm (0.25 inch)

4.8mm (0.19 inch)

6.35mm (1/4 inch) or more

50mm (1.97 inch) or more

5.7.5.4.2 Paper Weight

The weight of paper usable for Scanning

Type	Weight
Single-part paper only	79~87 g/m2 (21~23 lb)

Paper Thickness

0.1~0.11mm

Developer’s Guide: English 91

Image 91
