Page 120

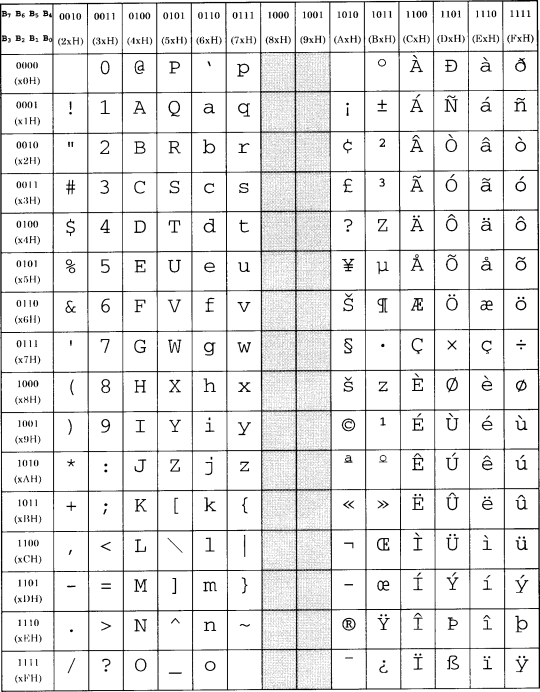

6.2.2.9 ISO 8859/15

6.2.2.9 ISO 8859/15

10xH and 1xH are Control Code areas.

2If a code received is other than a control code in 0xH and 1xH, it is ignored.

3The above table assumes international character set is set to “American.”

4The blank space (20H, 7FH, A0H) indicates a space code.

58xH and 9xH are ignored. (Shaded areas)

120 OKIPOS 425D

Image 120
