Enhanced MicroVersaTrip-C Trip Unit

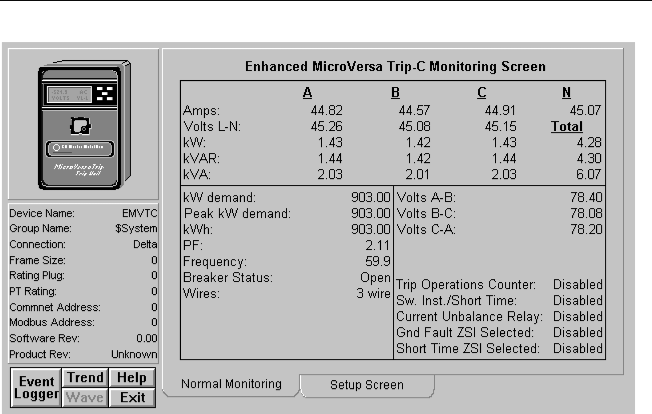

The Enhanced MicroVersaTrip-C Tabular Data Screen provides six push buttons on the Setup screen:

Tab	Button	Function

Setup	Energy	Clears the accumulated energy registers in the trip unit

	Demand	Clears the peak demand register in the trip unit

	Inst. Trip	Resets the instantaneous trip counter in the trip unit

	Short Trip	Resets the short-time trip counter in the trip unit

	Long Trip	Resets the long-time trip counter in the trip unit

	Ground Fault	Resets the ground fault trip counter in the trip unit

Table 23. EMVT-C Tabular data screen commands.

PMCS Interface Toolkit

Features of Tabular Data Screen Wizards ∙ 117
