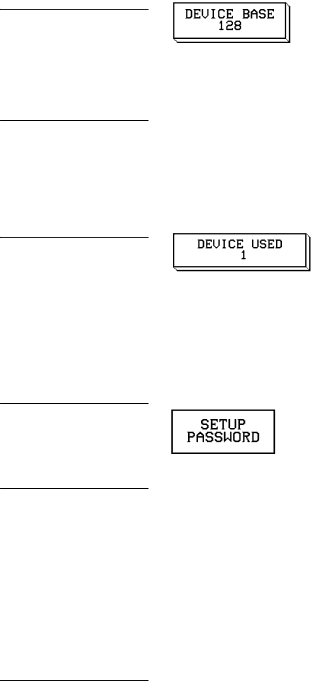

Figure108

DEVICE BASE button

Device used

Note

If four devices are used, and the base address is 128, then the touch panel will use device numbers 128, 129, 130, and 131 consecutively.

Figure109

DEVICE USED button

Press the DEVICE USED button to open the keypad (Figure 109) and set the panel’s device number from 1 – 4. Each device number supports up to 255 channel code button assignments. The multiple device setting option allows you to create up to four unique Touch Panel buttons and/or pages.

Setup password

Press the SETUP PASSWORD button to open the keypad shown in Figure 110 and set the numeric SETUP page password.

Figure110

SETUP PASSWORD button

Warning

If you change the password number, record the new number and keep it in a secure place. If you change the password, AMX cannot provide you with the password.

Note

You can still control the Touch Panel with your finger when mouse control is active.

The password number range is 1 through 9,999. (Do not use zero.) Do not change the SETUP page password unless you are concerned about unauthorized access to the Touch Panel pages.

CLEAR Press to clear the number in the keypad display.

ENTER Press to enter the new password into Touch Panel memory and close the keypad.

Mouse button

Press the MOUSE button (Figure 111) to open the Mouse Setup page shown in Figure 112.

Color Active-Matrix LCD Touch Panels

Touch Panel Program Reference

69
