Configuration | Leica 1000Z01 instruction

Configuration

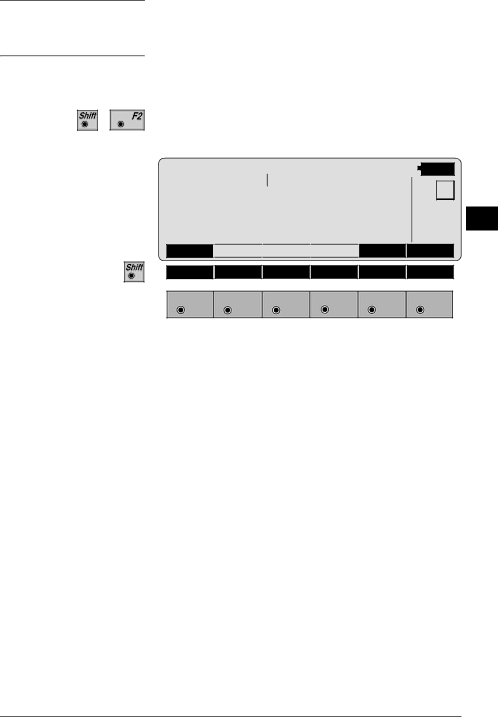

Configuration Editor

Start the "Configuration Editor" from the "FIRST

POINT" dialog.

TIED\ CONFIGURATION						14:03
Two Faces		:				NO
User Disp.
User Disp.		:				NO
Log	File	:			OFF
Log	FlName	:		TIEDIST.LOG

MC

TD

INFO

HELP

DFLT

YES

F1

F2

F3

F4

F5

F6

The "Configuration Editor" sets parameters for further program operations:

Two Faces : Set YES for dual-face measurement,

NO for single-face.

User Disp. : YES to use the measurement display set in the application "Measure & Record".

Set NO to use the "Tie Distance" default display.

Log File : Set to ON, the program will record measurement data in the Log File according to the format described on page 57.

Log FlName : Enter the Log File Name.

© Leica

TPS-System 1000 Programs-2.3.1en

55
