Firmware Pages and Descriptions

Setup Navigation Button Elements (Cont.)

Protected Setup:

Press the Protected Setup button to access the Protected Setup page section



that provides access to the panel’s sensors, calibration features, and



connection settings.



• Refer to both the Protected Setup Navigation Buttons section on page 100



and Protected Setup Page section on page 101 for more detailed



information.





Video Adjustment:

Press the Video Adjustment button to access the Video Adjustment page where



you can set the video properties for incoming video.



• This button only appears on Color Video (CV) capable touch panels.



• Refer to the Video Adjustment Page section on page 97 for more detailed



information.





Battery Base:

Press the Battery Base button to access the Battery Base page where you can



modify and monitor NXT-BP Modero Power Pack parameters.



• This button only appears when a Modero Table Top panel (NXT) is connected



to an NXA-BASE/B battery base.



• Refer to the Battery Base Page section on page 98 for more detailed



information.





Setup Page

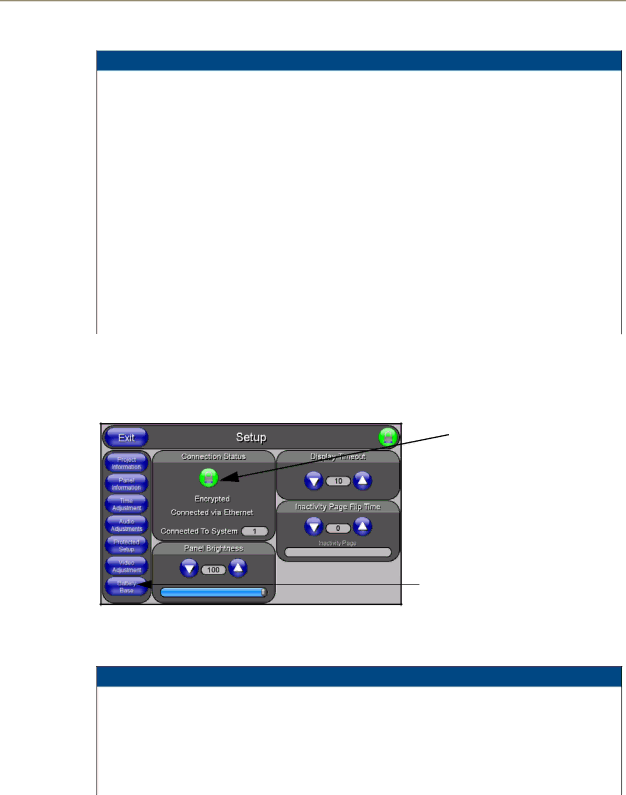

This page (FIG. 84) centers around basic Modero panel properties such as: Connection Status of the panel, Display Timeout, Inactivity Page Flip Time, Inactivity page file, and the Panel Brightness.

Connection Status

Red Connection Status icon - indicates no connection to a Master

Green Connection Status icon - indicates communication

to a Master

Battery Base button doesn’t appear until NXT is connected to a BASE/1

FIG. 84 Setup page

The elements of the Setup page are described in the table below:

Setup Page Elements

Exit:

Returns you to the Main touch panel page. In this case, the previous page is the



default Main page.





Connection Status icon:

This visual display of the connection status allows the user to have a current



update of the panel’s connection status regardless of what page is currently



active.



• A Lock only appears on the icon if the panel has established a connection



with a currently secured target Master (requiring a username and password).
