Firmware Pages and Descriptions

Calibration Page

This page (FIG. 99) allows you to calibrate the touch panel using a pre-selected touch driver.

Press and hold the grey Front Setup Access button (below the Modero LCD) for 6 seconds to access the Calibration page.

Press the crosshairs to calibrate the panel and return to the last active firmware page.

The request to touch the crosshairs is the first on-screen message

Calibration successful is the second on-screen message that appears after the calibration process is completed

On-screen crosshairs used for calibration of the touch device

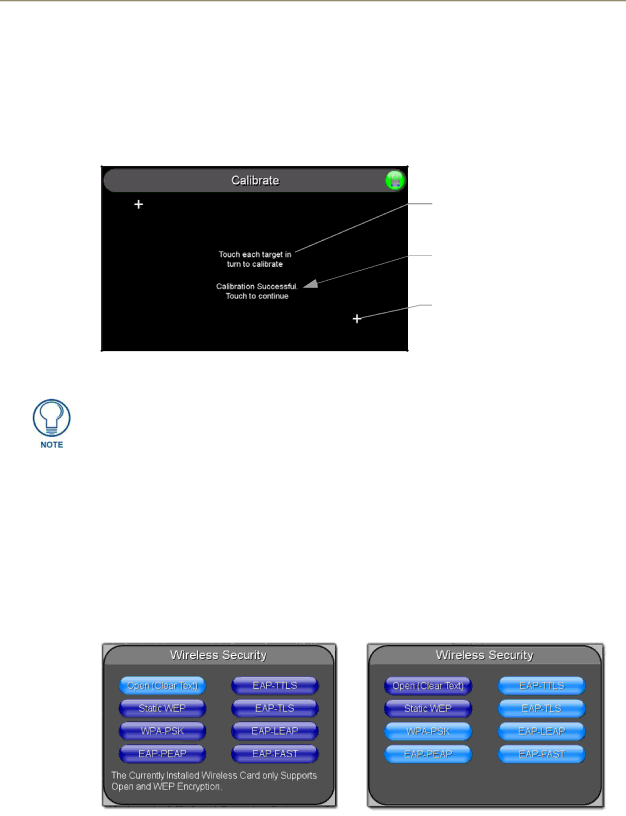

FIG. 99 Calibration page (actually 3 separate screens)

If the calibration was improperly set and you cannot return to the Calibration page (through the panel’s firmware); you can access this firmware page via

G4 WebControl where you can navigate to the Protected Setup page and press the Calibrate button through your VNC window.

This action causes the panel to go to the Calibration page seen above, where you can physically recalibrate the actual touch panel again using the above procedures.

Wireless Settings Page

The Wireless Settings page (FIG. 101) sets the communication parameters for the installed wireless CF card (either 802.11b/g). This information includes its corresponding IP communication parameters, wireless communication settings, and read the device number assigned to the Modero panel. Both panels can use 802.11b/g for wireless communication.

Once the panel has been updated with the latest Modero firmware, some encryption and security features may/may not be supported depending on the type of wireless card being used.

802.11b wireless card

802.11g wireless card

FIG. 100 Wireless Settings page (showing how each card supports its own security features)

7" Modero Widescreen Touch Panels

109
