19. Second Converter Adjustments

19.Second Converter Adjustments

Reference

Related Performance

T e s t

Description

RF Section:

A23 RF Converter

RF Gain Uncertainty Test

Spurious Responses Test

First, the second LO frequency is adjusted for proper frequency and then the LO shift is adjusted by using the front-panel keys to shift the LO up and down. Next, the Pilot IF Bandpass Filter is adjusted for proper bandpass and amplitude, then the signal IF Bandpass Filter

is adjusted. The second LO frequency and shift are checked and readjusted, if necessary.

SYNTHESIZED WEEPER

R POWER METER

PDWER

SENSOR

2 0 dB

ATTENUATOR

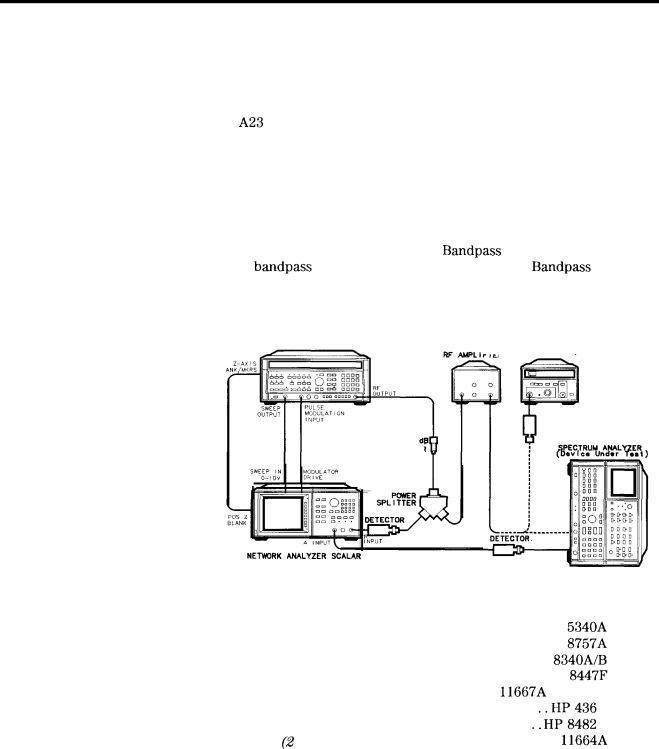

Figure 3-72. Second Converter Adjustments Setup

Equipment Frequency Counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . HP 5340A Scalar Network Analyzer . . . . . . . . . . . . . . . . . . . . . . . HP 8757A

Synthesized Sweeper . . . . . . . . . . . . . . . . . . . . . . . . HP 8340A/B

Amplifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . HP 8447F

Power Splitter . . . . . . . . . . . . . . . . . . . . . . HP 11667A Opt. 001

Power Meter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..HP436 A

Power Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..HP8482 A Detector (2 required) . . . . . . . . . . . . . . . . . . . . . . . . HP 11664A

Adjustments 3-123
