6

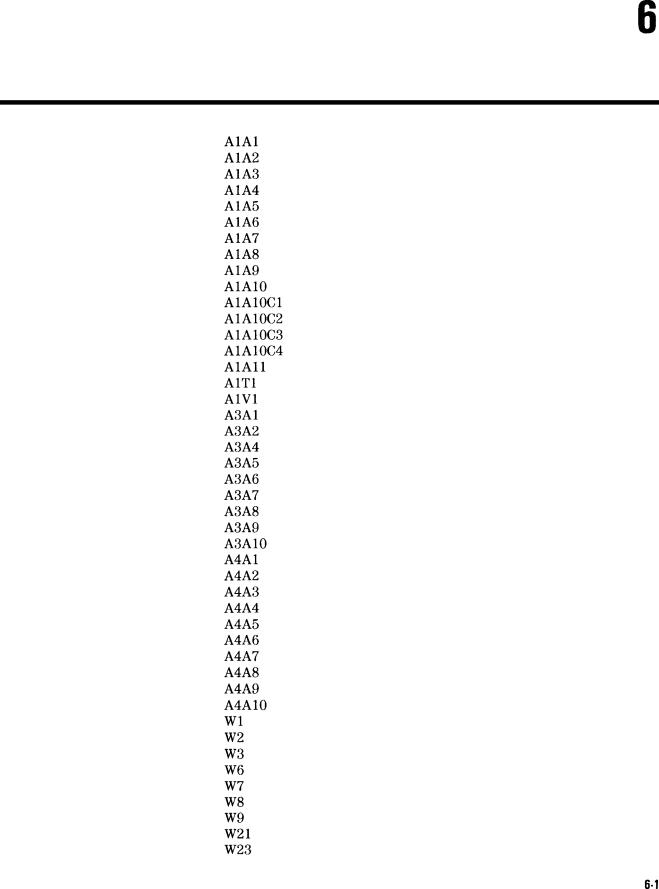

Major Assembly and Component Locations

IF-Display Section Figure Index

Assembly	See Figure
AlAl	. . . . . . . . . . 6-6
AlA	. . . . . . 6-4, 6-5
AlA	. . . . . . 6-4, 6-5
AlA	. . . . . . . . . . 6-4
AlA	. . . . . . . . . . 6-4
AlA	. . . . . . 6-4, 6-5
AlA	. . . . . . 6-4, 6-5
AlA	. . . . . . 6-4, 6-5
AlA	. . . . . . 6-4, 6-5
AlAlO	. . . . . . . . . . 6-7
AlAlOCl	. . . . . . 6-4, 6-5
AlAlOC2	. . . . . . . 6-4, 6-5
AlAlOC3	. . . . . . 6-4, 6-5
AlAlOC4	. . . . . . 6-4, 6-5
AlAll	. . . . . . . . . . 6-4
AlTl	. . 6-4, 6-5 6-7
AlVl	6-4, 6-5 6-6, 6-7
A3Al	. . . . . . 6-4, 6-5
A3A2	. . . . . . 6-4, 6-5
A3A4	. . . . . . 6-4, 6-5
A3A5	. . . . . . 6-4, 6-5
A3A6	. . . . . . 6-4, 6-5
A3A7	. . . . . . 6-4, 6-5
A3A8	. . . . . . 6-4, 6-5
A3A9	. . . . . . 6-4, 6-5
A3AlO	. . . . . . . . . . 6-7
A4Al	. . . . . . 6-4, 6-5
A4A2	. . . . . . 6-4, 6-5
A4A3	. . . . . . 6-4, 6-5
A4A4	. . . . . . 6-4, 6-5
A4A5	. . . . . . 6-4, 6-5
A4A6	. . . . . . 6-4, 6-5
A4A7	. . . . . . 6-4, 6-5
A4A8	. . . . . . 6-4, 6-5
A4A9	. . . . . . 6-4, 6-5
A4AlO	. . . . . . . . . . 6-7
Wl	. . . . . . . . . . 6-6
w2	. . . . . . . . . . 6-6
w3	. . . . . . . . . . 6-6
W6	. . . . . . . . . . 6-4
w7	. . . . . . . . . . 6-4
W8	. . . . . . 6-6, 6-7
w9	. . . . . . . . . . 6-6
W21	. . . . . . 6-4, 6-5
W23	. . . . . . . . . . 6-7

Major Assembly and Component locations 6-l
