22.Comb Generator Adjustments

Reference

RF Section:

A23 RF Converter

Al6 20 MHz Reference

Description The output of the Pilot First Converter is connected to the signal input of the Second Converter. This allows the comb teeth from the A23A6 Comb Generator to be displayed on the CRT display. The phase lock flags are disabled, using a shift key function to prevent the instrument from “locking up” due to the phase lock loops being open. A display line is placed on the CRT at the level to which the comb teeth are to be adjusted. the comb teeth are adjusted for best overall flatness and to the proper amplitude.

R31 C O M B D R I V E

A23A6

COMB (;ENt IRATOR

\IIi

A6C7 H F P E A K (Benenth C o v e r )

A612 COMB PEAK / A4A2RE C O M B B I A S

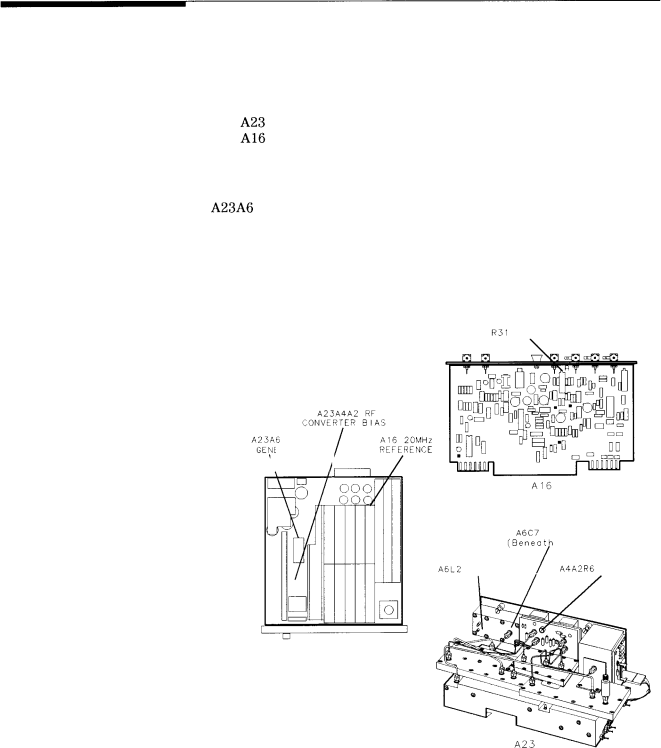

Figure 3-83. Location of Comb Generator Adjustments

3-136 Adjustments
