HP 8568B 142

1. Low-Voltage Power Supply Adjustments

supply, therefore, if the +5V supply is out of tolerance, a circuit malfunction is indicated.

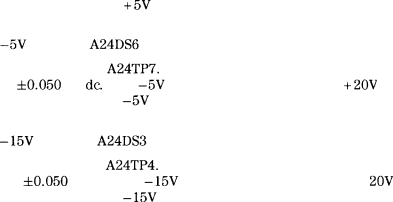

17.The -5V indicator A24DS6 (yellow LED) should be lit.

18.Connect the DVM to A24TP7. The DVM indication should be

-5.200 ho.050 V de. The -5V supply is referenced to the +2OV supply, therefore, if the -5V supply is out of tolerance, a circuit malfunction is indicated.

19.The -15V indicator A24DS3 (yellow LED) should be lit.

20.Connect the DVM to A24TP4. The DVM indication should be

-15.000 f0.050 V dc. The -15V supply is referenced to the + 20V supply, therefore, if the -15V supply is out of tolerance, a circuit malfunction is indicated.

3-28 Adjustments
