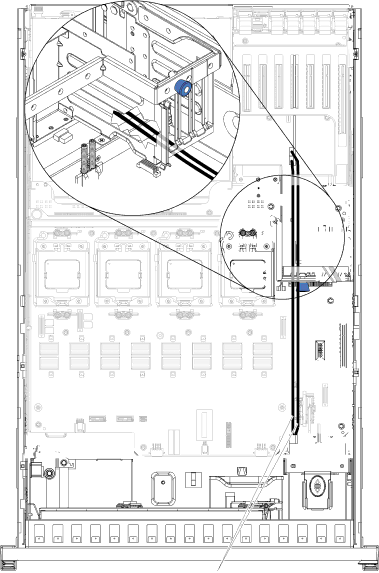

11.Route the SAS cables under the bottom of the I/O shuttle.

SAS signal cables (2)

12.Connect one end of each SAS signal cable that came with the eXFlash drive cage and backplane option to the backplane and the other end to the ServeRAID adapter.

vConnect one end of the first cable to Port 0 on the ServeRAID adapter and the other end to connector J39 on the backplane.

vConnect one end of the second cable to Port 1 on the ServeRAID adapter and the other end to connector J40 on the backplane.

13.Reinstall the top cover bracket.

If you have other devices to install or remove, do so now. Otherwise, go to “Completing the installation” on page 79.

Chapter 2. Installing optional devices 51
