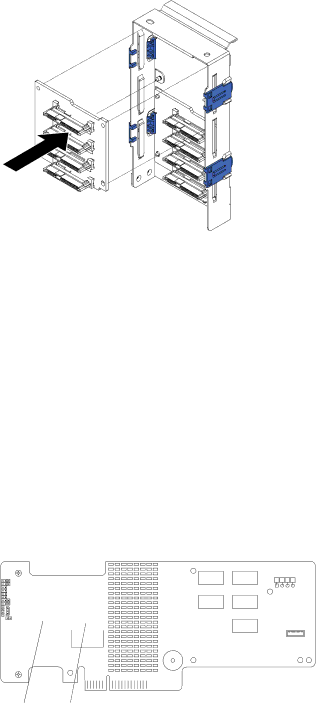

12.Orient and install the new backplane into the backplane carrier.

a.Position the notch in the backplane over the bottom right of the carrier.

b.Position the holes in the backplane over the pins in the carrier.

c.Push the backplane into the carrier.

13.Connect the new SAS signal cable that came with the backplane to the new backplane.

14.Connect the two unconnected power cables from the SAS power cable handle to the new backplane. (Look at the cabling of the first backplane to make sure that you cable the new backplane correctly.)

15.Slide the backplane carrier into place until it latches while you hold the SAS power cable handle out of the way.

16.Install the SAS power cable handle into place straight down onto the microprocessor board.

17.Connect the two SAS signal cables to the ServeRAID adapter. Connect the cable from the bottom backplane to port 0 and the cable from the new top backplane to port 1. The following graphics show the port numbers on the ServeRAID adapters.

ServeRAID M5015 controller

Port 1

Port 0
