NEC Cable PortBar

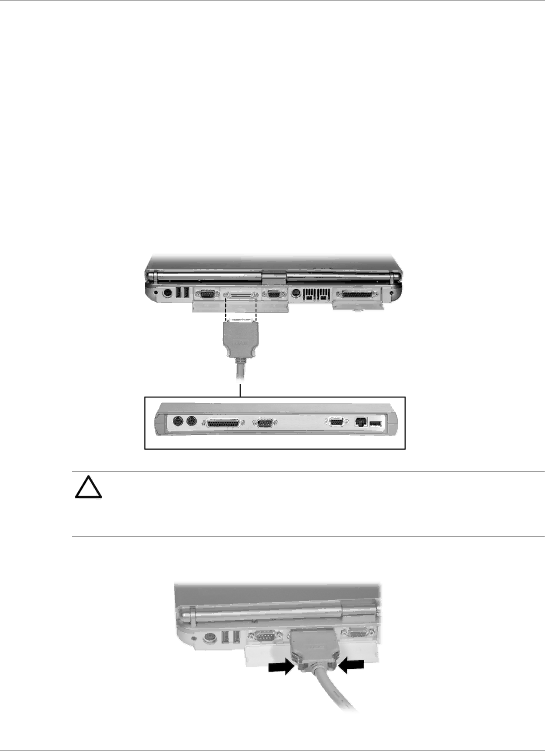

Use the following steps to connect the NEC Versa L320 to the optional NEC Cable PortBar.

1.Disconnect the devices from the back of the NEC Versa that you want to connect to the PortBar.

2.Align the PortBar connector with the port on the back of the system.

3.Squeeze the sides of the PortBar connector together. Insert the connector into the port on the back of the system.

4.Connect the devices to the PortBar (see Chapter 1 for port identification).

Connecting the PortBar

Press the releases on the sides of the PortBar connector together while pulling the connector out. The cable connector and the connector on the system can be damaged if the releases are not pressed.

Disconnecting the PortBar
