Ricoh VT3800 - page 206

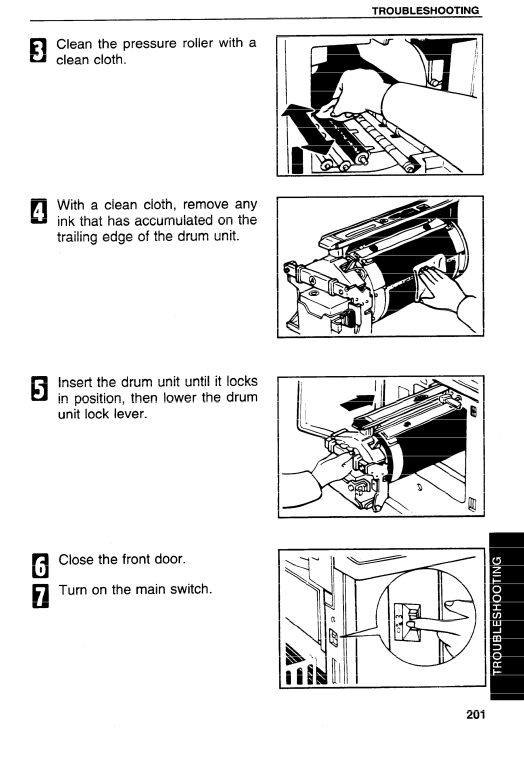

TROUBLESHOOTING

Clean the pressure roller with a

clean cloth.

With aclean cloth, remove any

ink that has accumulated on the

trailing edge of the drum unit.

Insert the drum unit until it locks

in position, then lower the drum

unit lock lever.

,Close the front door.

aTurn on the main switch.

201

OPTIONAL FUNCTIONS

HLoosen the screws of the side

plates.
