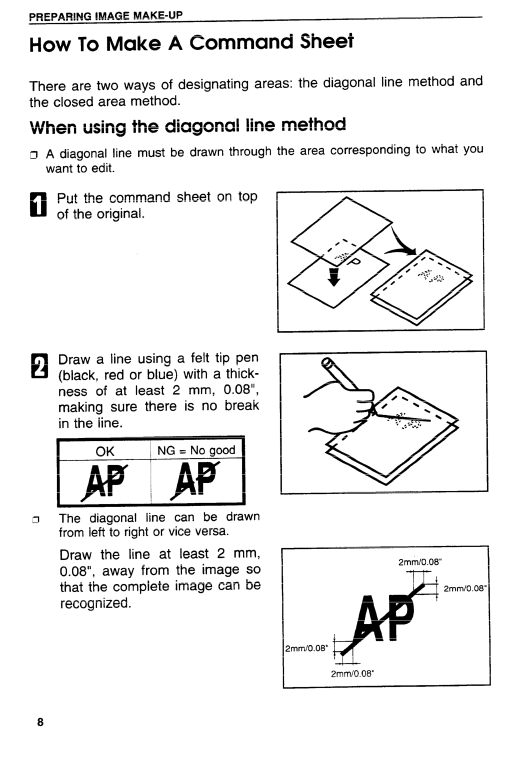

PREPARING IMAGE MAKE-UP

How To Make A Command Sheet

There are two ways of designating areas: the diagonal line method and the closed area method.

When using the diagonal line method

CI A diagonal line must be drawn through the area corresponding to what you want to edit.

ElPut the command sheet on top of the original.

ElDraw a line using a felt tip pen (black, red or blue) with a thick- ness of at least 2 mm, 0.08”, making sure there is no break in the line.

rl The diagonal line can be drawn from left to right or vice versa.

Draw the line at least 2 mm, 0.08”, away from the image so that the complete image can be recognized.
