Dell R300 owner manual Release the socket-release lever before opening the processor shield

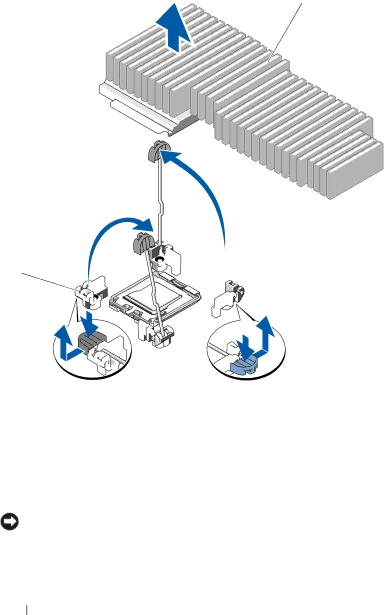

Figure 3-19. Installing and Removing the Heat Sink

2

1

1 release levers (2) 2 heat sink

8Release the socket-release lever before opening the processor shield.

9Rotate the processor shield upward and out of the way.

10Lift the processor out of the socket and leave the release lever up so that the socket is ready for the new processor.

NOTICE: Be careful not to bend any of the pins on the ZIF socket when removing the processor. Bending the pins can permanently damage the system board.

108

Installing System Components
