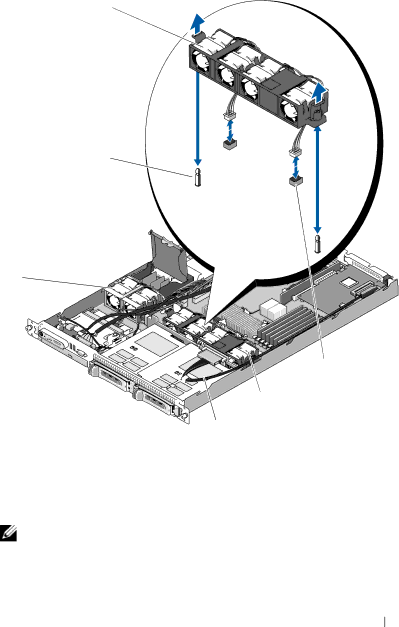

Figure 3-10. Installing and Removing the Fan Assembly

3

2

1







4







5





6



1

power supply fan bay assembly

2

securing posts (2)

3

release levers (2)

4

fan cables and connector

5

system fan bay assembly

6

SAS expansion card data cable

NOTE: In the preceding figure, the 12C cable is shown connecting over the control panel cabling. This cable should be routed under the control panel cable and the internal USB key connector. The 12C cable seats in a cable guide clip that is directly beneath the control panel connector.

Installing System Components

85
