4Insert the USB memory key into the USB connector onto the board. See Figure 3-13.

5Close the system. See "Opening and Closing the System" on page 68.

6Reattach any peripherals, then connect the system to the electrical outlet.

7Turn on the system and attached peripherals.

8Enter the System Setup program and verify that the USB key has been detected by the system. See "Entering the System Setup Program" on page 45.

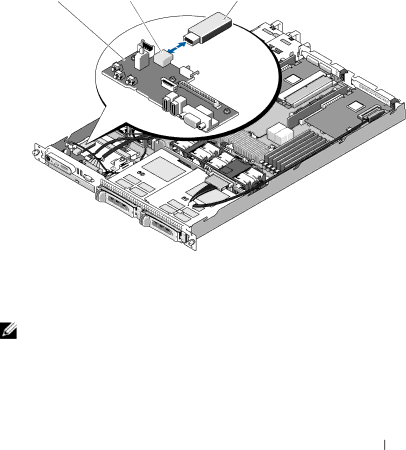

Figure 3-13. Installing an Internal USB Key

1

2

3

1

front control board

2

internal USB connector

3 USB memory key

NOTE: In the preceding figure, the 12C cable is shown connecting over the control panel cabling. This cable should be routed under the control panel cable and the internal USB key connector. The 12C cable seats in a cable guide clip that is directly beneath the control panel connector.

Installing System Components

91
