Dell R300 owner manual control-panel circuit board securing, display-module securing screws

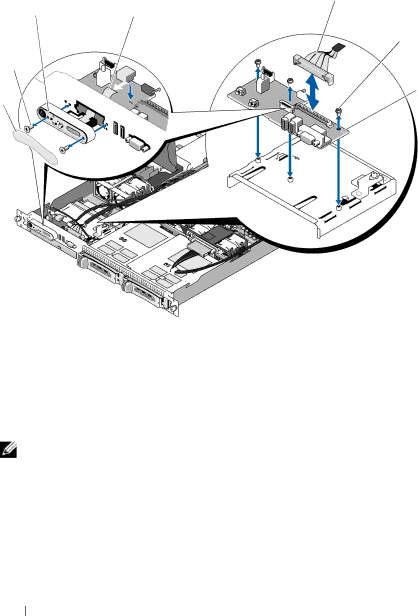

Figure 3-22. Installing and Removing the Control Panel Assembly

5

34

6

2

7 1

1	display-module label	2	display-module securing screws (2)
3	display module	4	display-module cable
5	control-panel cable	6	control-panel circuit board securing
			screws (3)
7	control-panel circuit board

NOTE: In the preceding figure, the 12C cable is shown connecting over the control panel cabling. This cable should be routed under the control panel cable and the internal USB key connector. The 12C cable seats in a cable guide clip that is directly beneath the control panel connector.

5Disconnect the internal USB key cable and, if applicable, the hard-drive backplane 12C cable. See "Installing the Optional Internal USB Memory Key" on page 90 and "Removing the Backplane Board" on page 100.
