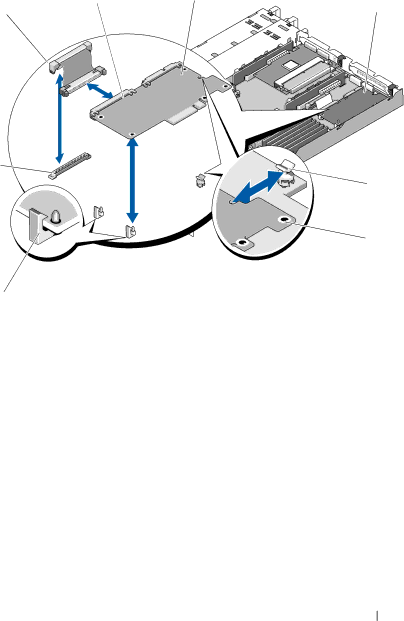

Figure 3-14. Removing and Installing a RAC Card

34

2 5

1

			6
			7
8
1	RAC-card system board connector	2	RAC-card ribbon cable
3	RAC-card connector	4	RAC card
5	RAC card bay	6	retention standoffs
7	standoff holes (5)	8	support standoffs

6Pull back slightly on one of the blue retention standoff tabs and gently work the edge of RAC card off of the standoff. Repeat for the other retention standoff.

7Angle the free end of the RAC card up and pull the card away from the support standoff.
