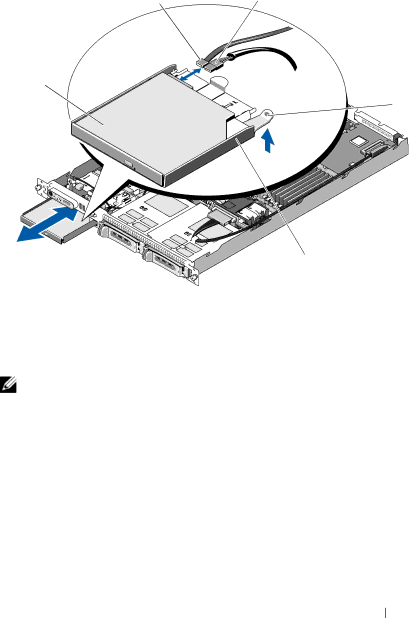

Figure 3-8. Removing and Installing the Optional Optical Drive

23

1

4

			5
1	optical drive	2	optical-drive interface cable
3	power cable	4	optical-drive release tab
5	optical-drive tray

NOTE: In the preceding figure, the 12C cable is shown connecting over the control panel cabling. This cable should be routed under the control panel cable and the internal USB key connector. The 12C cable seats in a cable guide clip that is directly beneath the control panel connector.

Installing System Components

81
