7-8

Configuration, etc.). The first click of the mouse will sort the QuickMAPs in ascending order and the second click will sort them in descending order. See section 6 for the location of the QuickMAP directory.

QuickMAP Properties

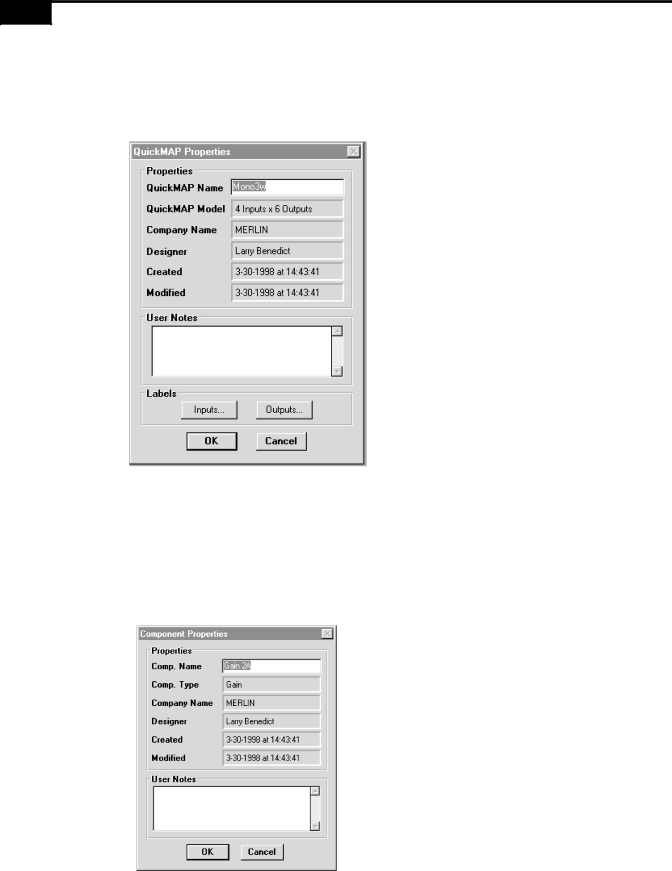

Figure 7-12QuickMAP properties dialog.

QuickMAP Properties (see Figure 7-13) appear by clicking on the QuickMAP entry in the Project Manager and then clicking on the Properties button. From this dialog, you can change the QuickMAP name. You can also change the names of the input and output labels by clicking on either the Inputs or Outputs buttons.

Component Properties

Figure 7-14Component properties dialog.

10 July 1998
