7-14

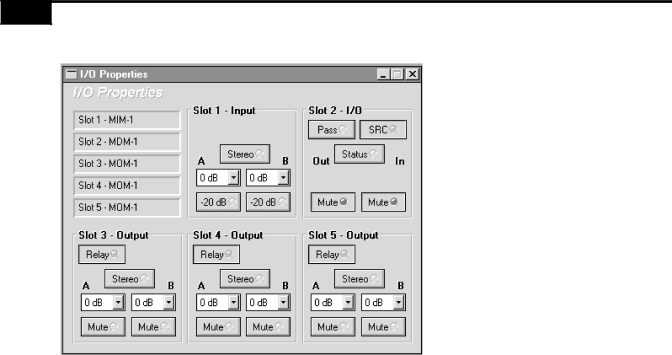

I/O Properties (see Figure 7-21)

Figure 7-21I/O properties dialog.

Input

The Input Function controls the levels entering the unit. This function can be accessed in any of the following three ways:

1.Clicking on the green input triangles.

2.Right clicking on either the green input or green output triangles and selecting Properties from the pop-up list.

3.Clicking on the I/O Slots entry in the Project Manager and then clicking on the Properties button.

Using the Stereo Control

This button controls the tracking of the Gain/Attenuator levels. If the LED is gray, then the two channels do not track each other. If the LED is blue, then the channels track each other. Clicking on the button will toggle the setting.

Gain

To change settings, click on the arrow next to the number in the text box. A selection list will appear. The list may or may not be scrollable. Click on the desired entry to make a selection.

Using the Pad Control

This button controls the insertion of a -20dB pad in the signal path. A gray LED on the button indicates the pad is not inserted. A red LED on the button indicates that the pad is inserted. Clicking on the button will toggle the setting.

10 July 1998
