Printer Memory
3 |
4 |

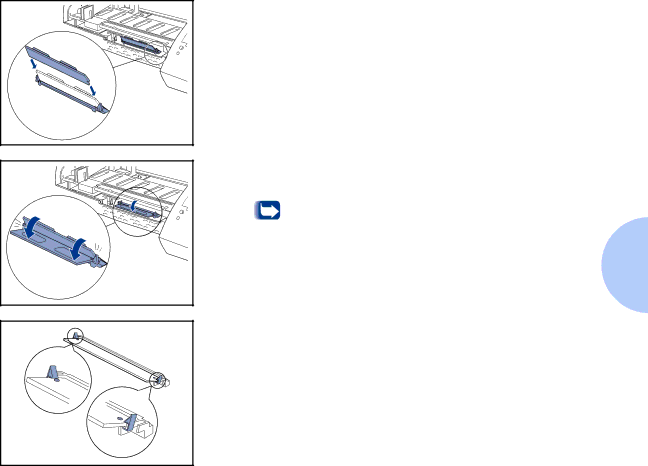

Hold the memory SIMM with the connection points pointing toward the connector and position the notch as shown.
Insert the memory SIMM all the way into the connector at a 45° angle, and rotate it down until it snaps into place.
You can hear the memory option click into place.
5
6
Verify that both metal clips on the connector are fastened, and that the two pins on each end of the connector are pushed through the holes on the memory option.
Continue with the section “Closing the System Board from the Front” on the next page.
