Flash Memory

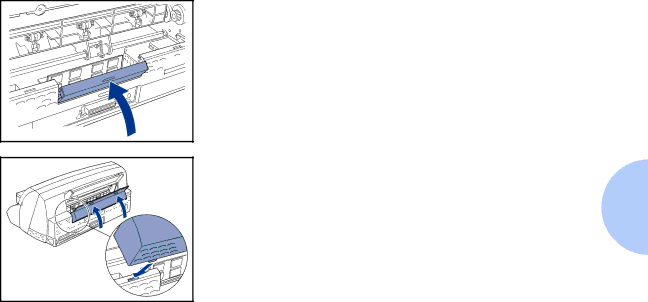

Closing the System Board from the Rear

Complete the following steps to close the Printer System Board after you have installed the flash memory SIMM:

1

2

Push on the access cover until it snaps into place.

Do one of the following:

Reattach the printer rear cover.

-Insert the two tabs on the bottom of the cover into the slots on the back of the printer, as shown.

-Push the cover forward until it snaps firmly into place.

Reinstall the optional Tray 2 (if one was attached). If you need help, see the section “Input Tray 2” (page C-25).
